Semiconductor Applications
HS carbon high-purity graphite components are crucial to processes in the semiconductor industry that are suitable for use in a high-temperature and dust-free environment, we offer high-precision graphite components for wafer processing equipment, such as susceptors for Epitaxy or MOCVD.

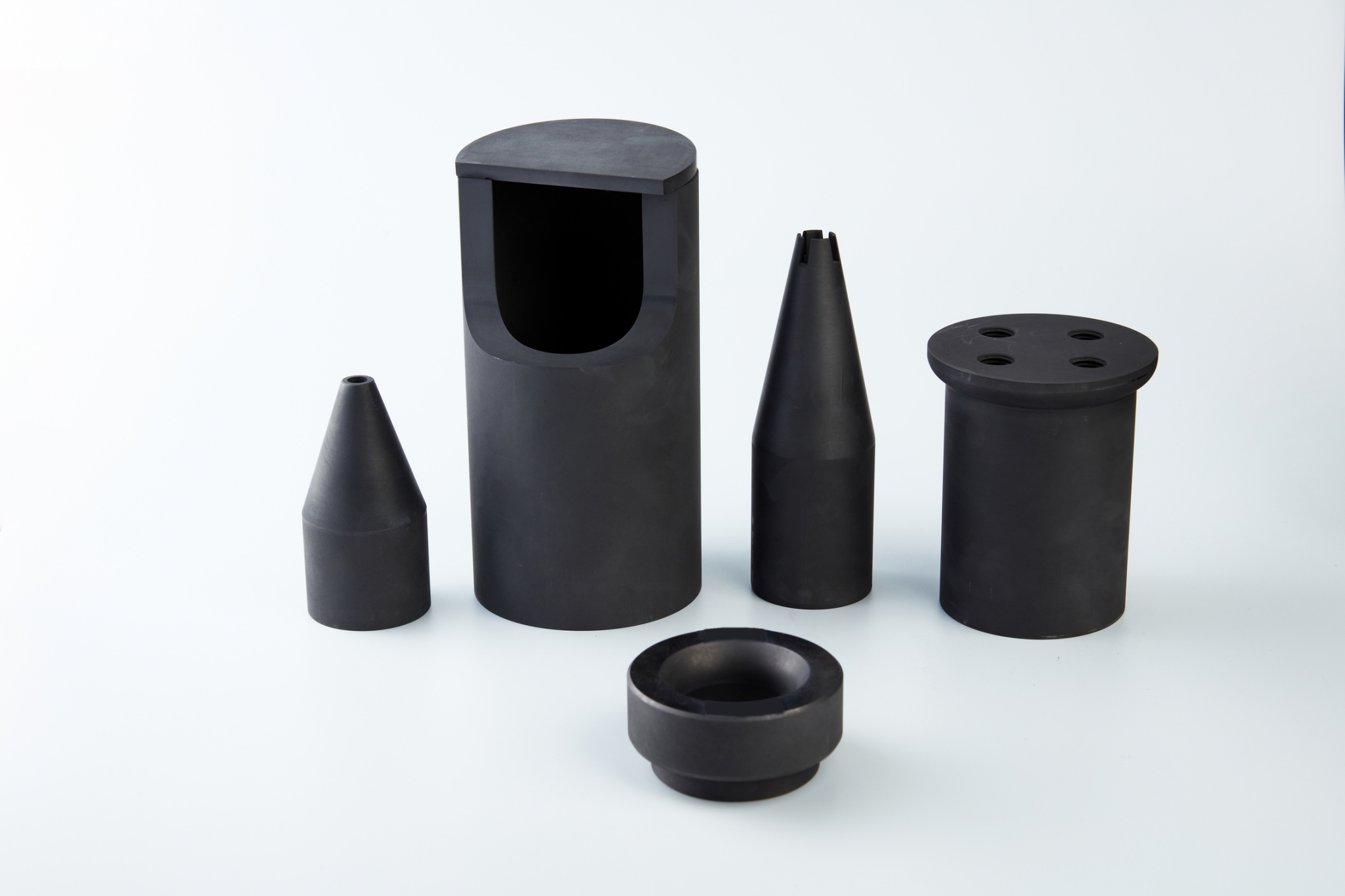

Monocrystalline silicon

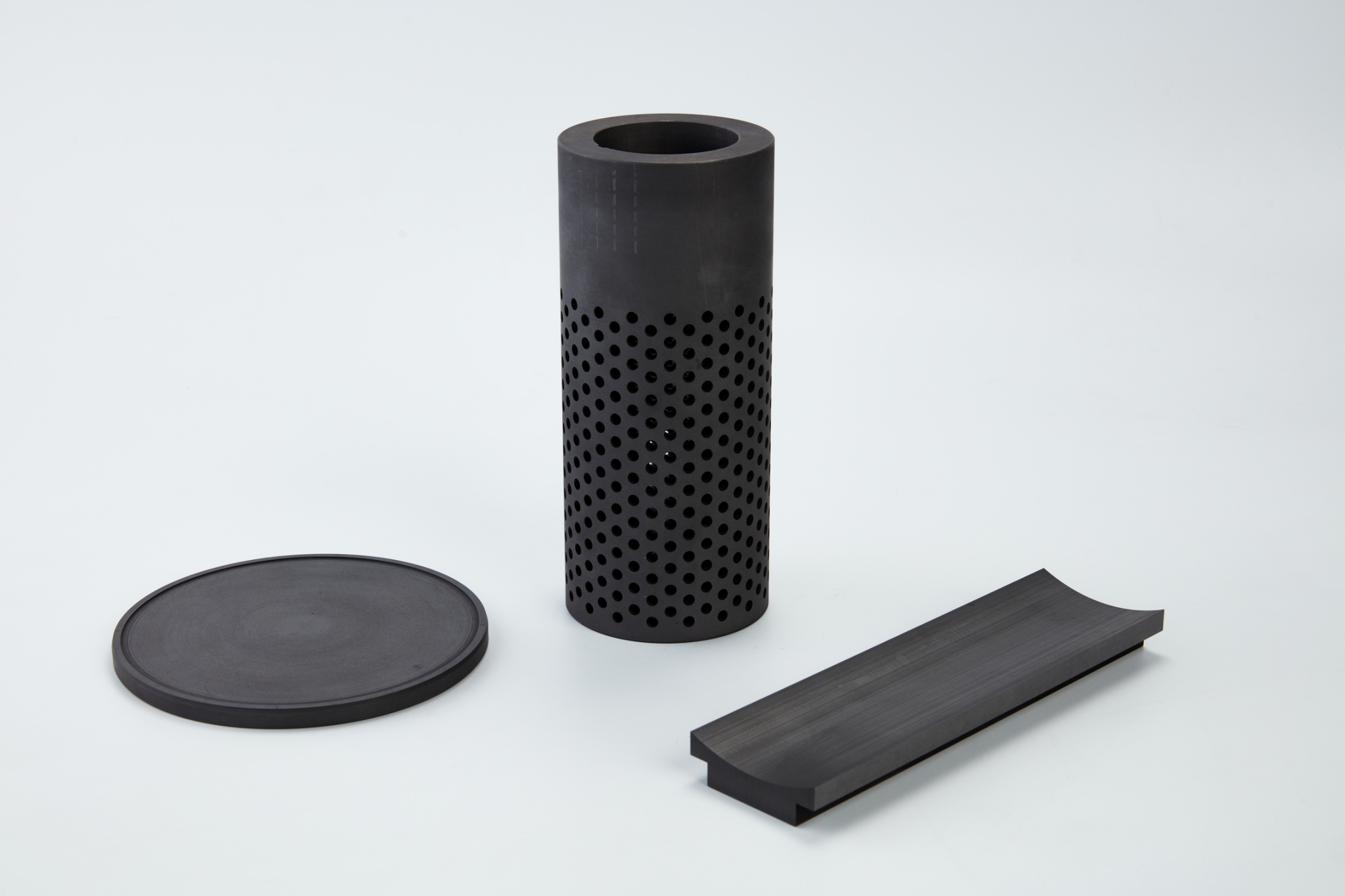

High purity graphite for Ion implant

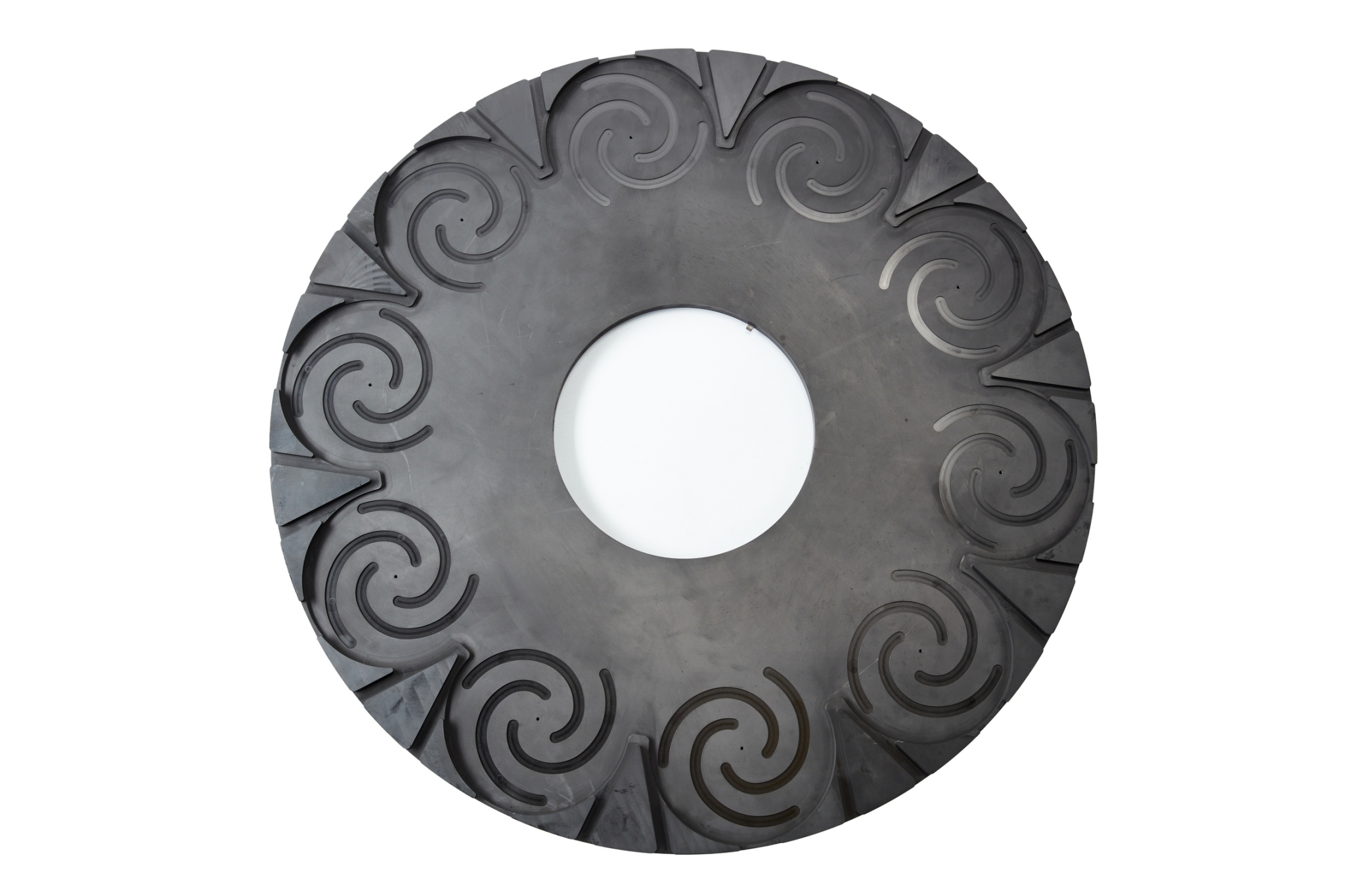

MOCVD Susceptor

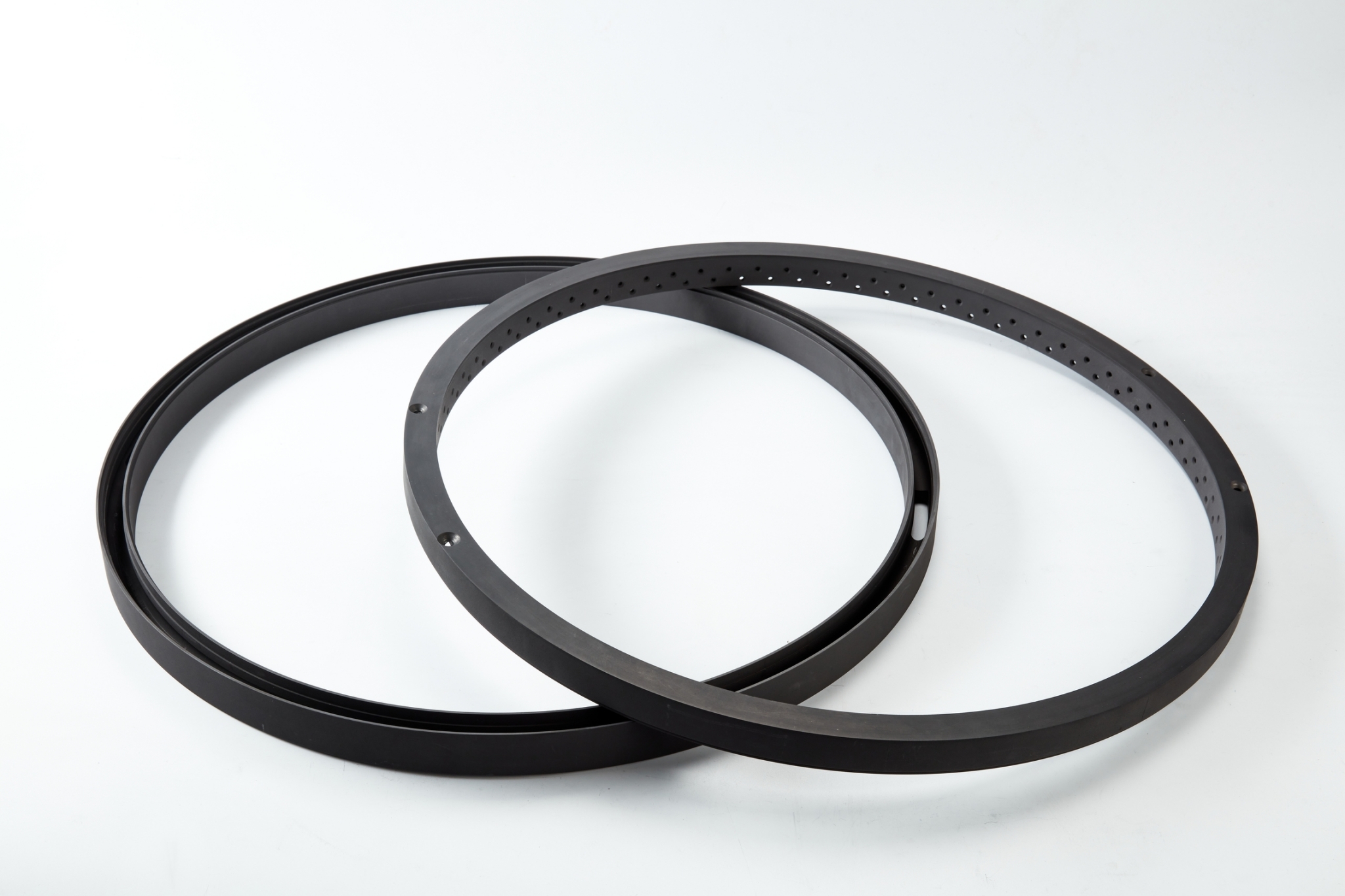

MOCVD cyclone ring

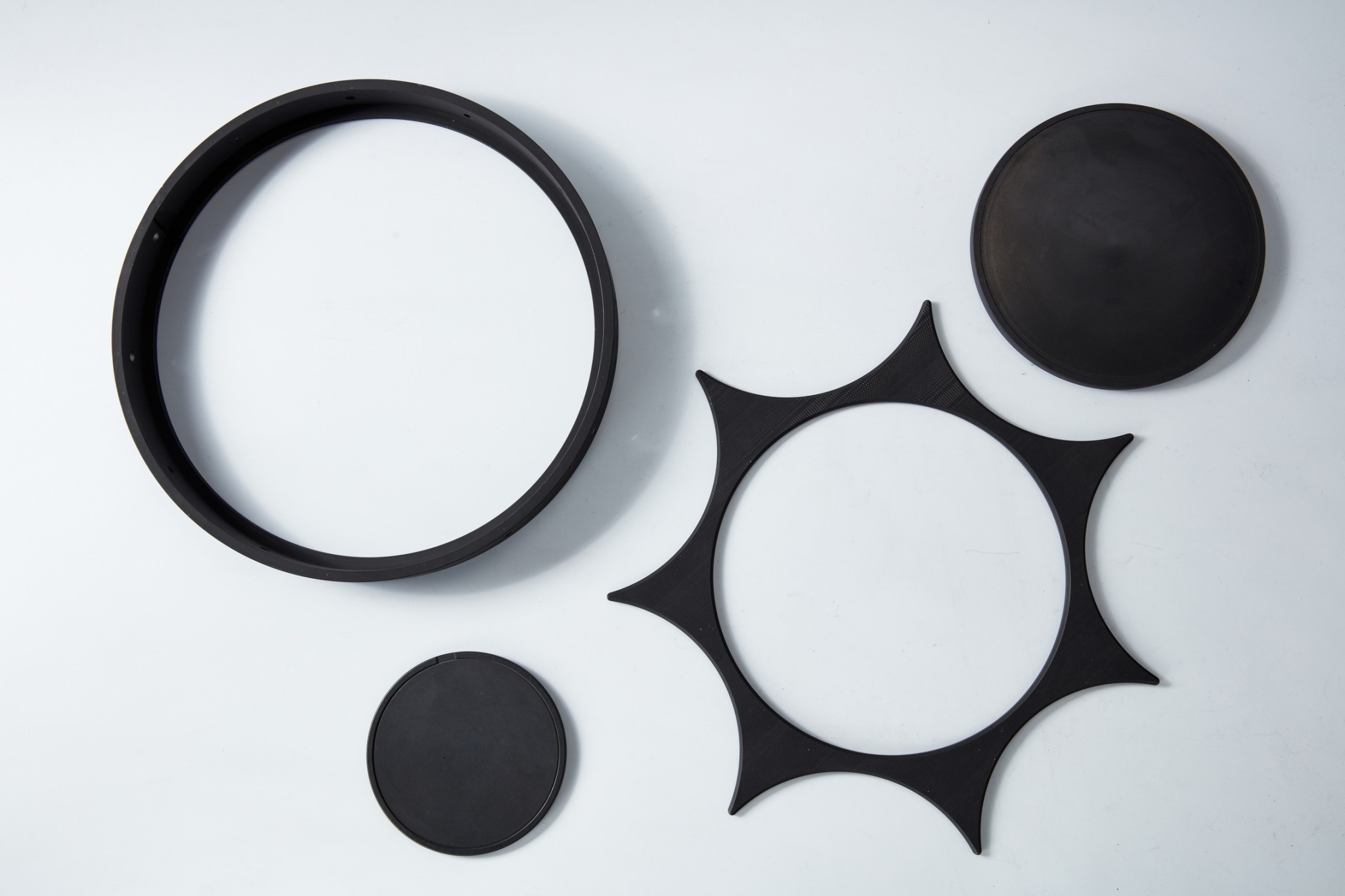

MOCVD components

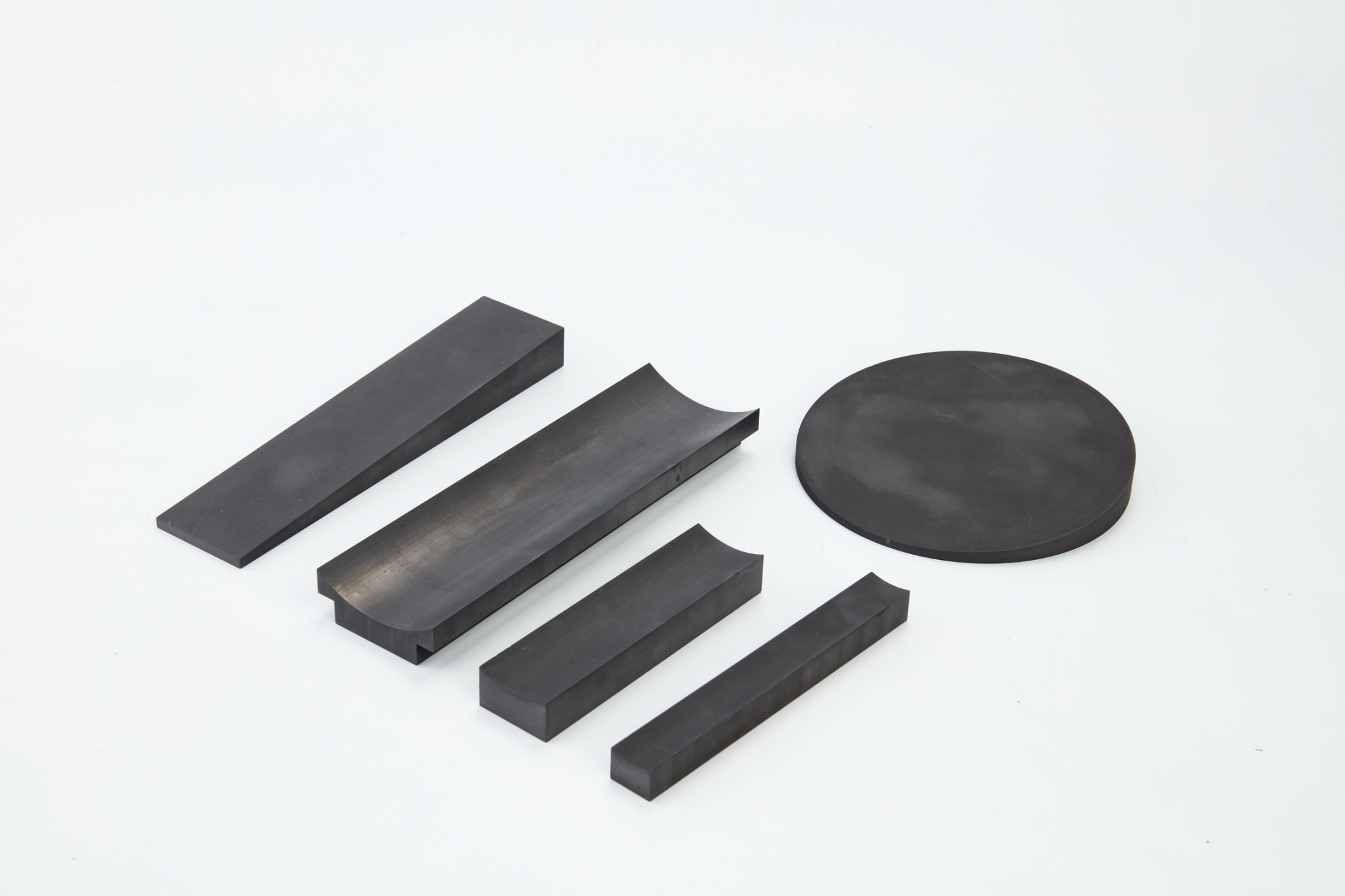

Graphite fixture
| Proerty | values | R-6340 | R-6500 | R-6510 | R-6650 |
| Density | g/cm3 | 1.72 | 1.77 | 1.83 | 1.84 |
| Porosity(Open) | % | 15 | 14 | 10 | 10 |
| Grain Size |
μm |
15 | 10 | 10 | 7 |
| Hradness Rockwell B 5/100 |
HRB |
80 | 70 | 90 | 95 |
| Young's mouldus | Mpa | 11000 | 10500 | 11500 | 12500 |
| Flexural Strength |
Mpa |
40 | 45 | 60 | 65 |
| Compressive Strength |
Mpa |
85 | 90 | 130 | 150 |
|
Specific electrical resistance |
µΩm | 16 | 12 | 13 | 14 |
| Thermal expension | x10-6K-1 | 3.2 | 4.2 | 4.2 | 4.1 |
|
Thermal conductivity |
Wm-1K-1 | 105 | 90 | 105 | 95 |
|
Ash Value |
ppm | 100 | 100 | 100 | 100 |
