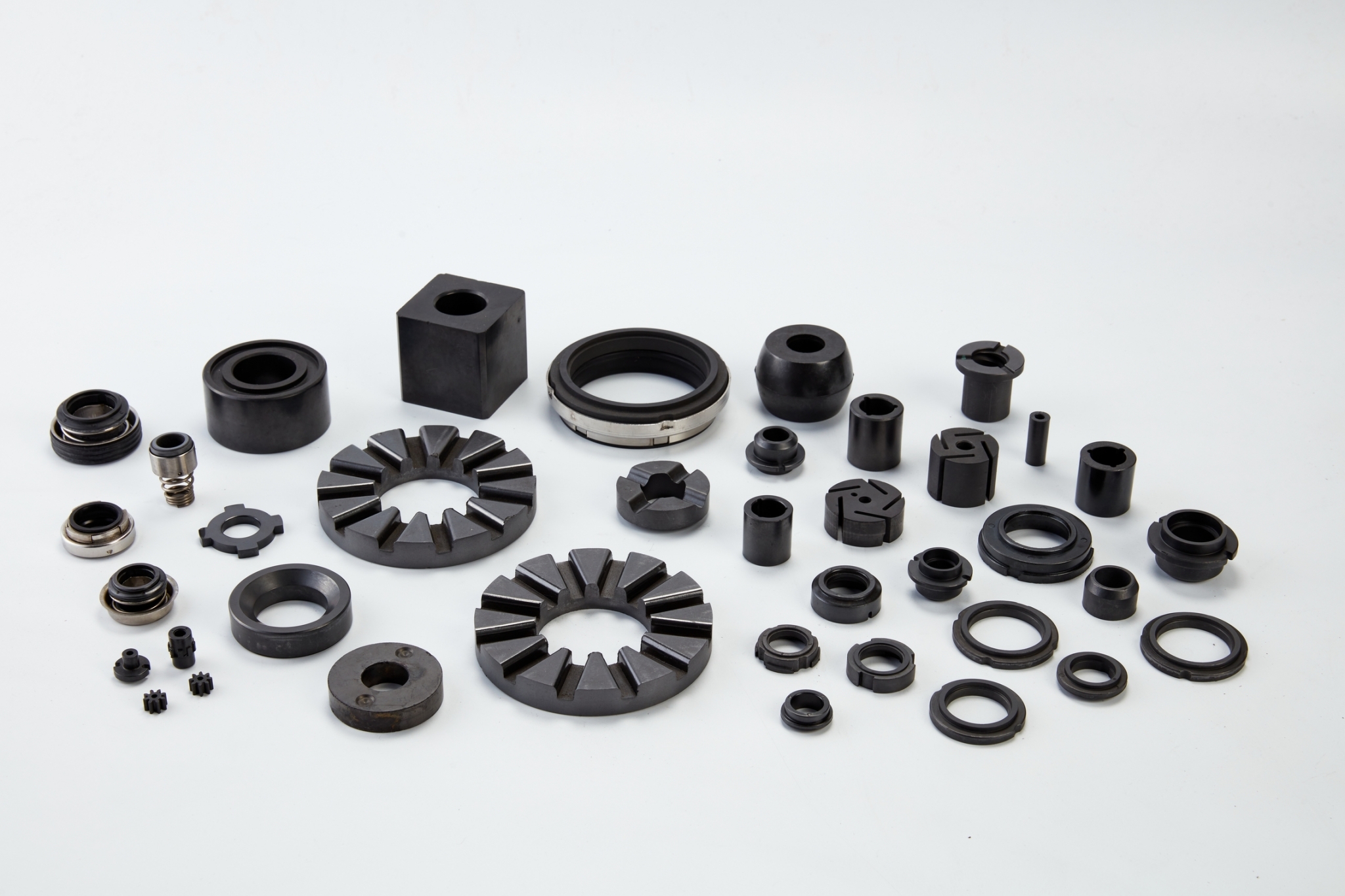

Graphite Injection Applications
Graphite injection or compression molding materials have self-lubricity, acid and alkali resistance, high hardness, wear resistance. For the special shape of the product, we can develop special molds for mass production.
| Physical property | values | SC-3E3 | SC-3E3-HT | GC-202 | GC-202-HT | BSP-80 |
| Density | g/cm3 | 1.78 | 1.8 | 1.75 | 1.75 | 1.78 |
| Hardness | Shore | 80 | 80 | 70 | 65 | 35 |
| Flexural Strength |
Mpa |
75 | 75 | 70 | 65 | 40 |
| Compressive Strength |
Mpa |
190 | 190 | 180 | 130 | 100 |
|
Thermal Expansion |
x10-6K-1 | 2 | 4.5 | 12 | 6~7 |
16 |
|
Temperature resistance in ox,Atm |
℃ |
180 |
250 |
180 |
300 |
180 |
