Graphite Heat Exchanger Applications
With extreme corrosive resistance to hydrochloric acid, sulfuric acid, citric acid, pesticides, alkali, and other corrosive media, the graphite heat exchanger is widely used in organic and inorganic chemistry. Graphite heat exchanger has a good thermal conductivity which is suit for chemical processing, such as heating, cooling, condensing, and absorbing. We can provide different designs according to different mediums such as cylindrical blocks, cubic blocks, tubes, and other types based on different requests.

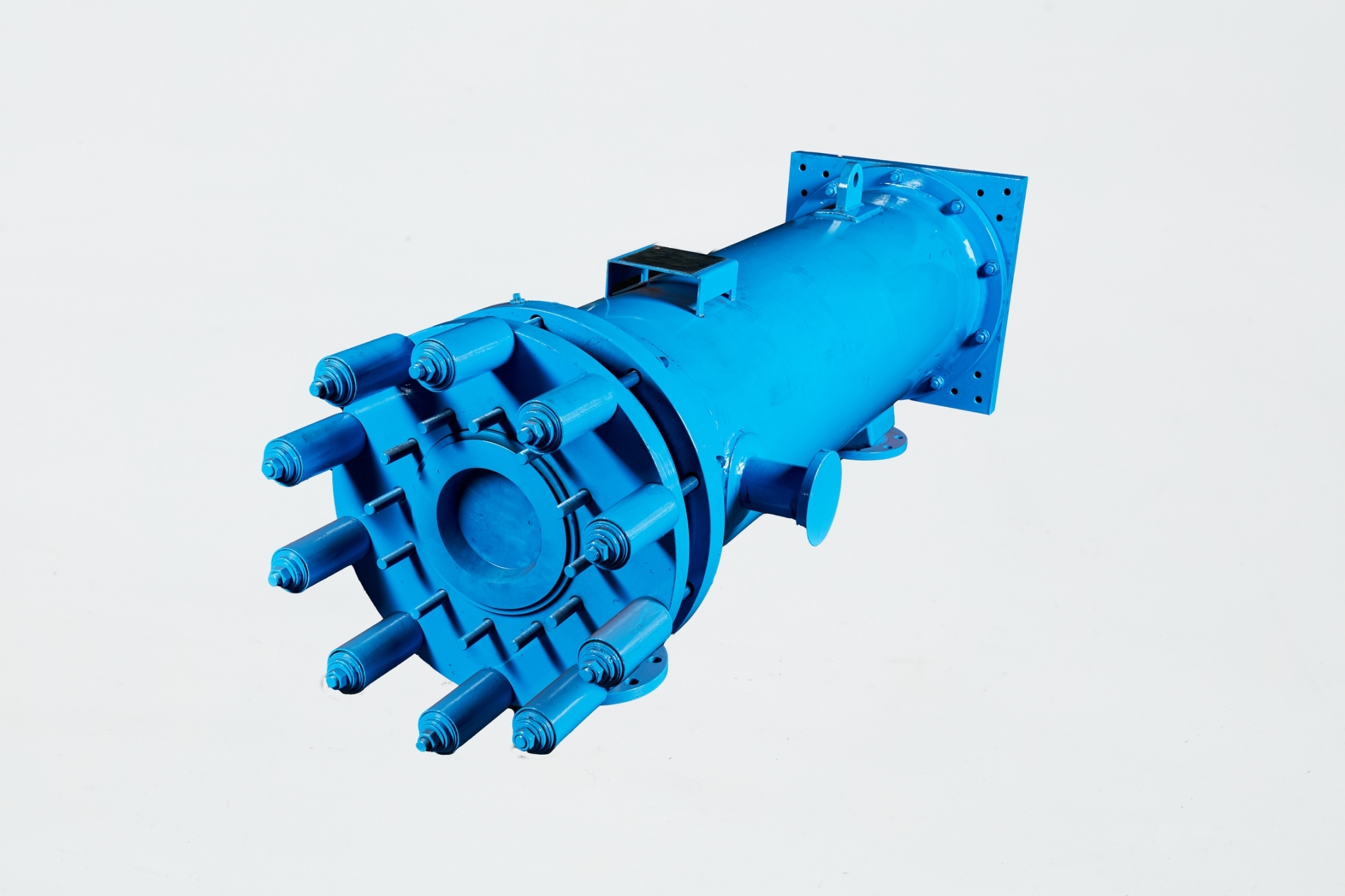

Tubes type graphite heat exchanger

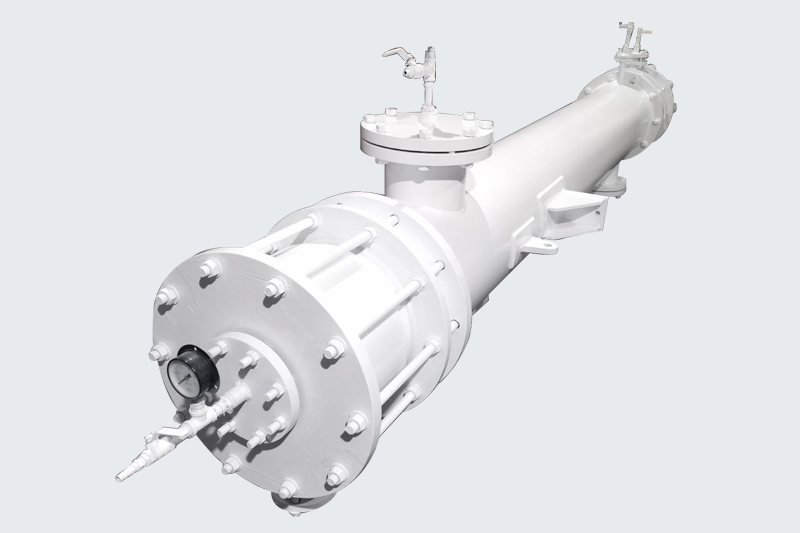

Cylindrical blocks type graphite heat exchanger

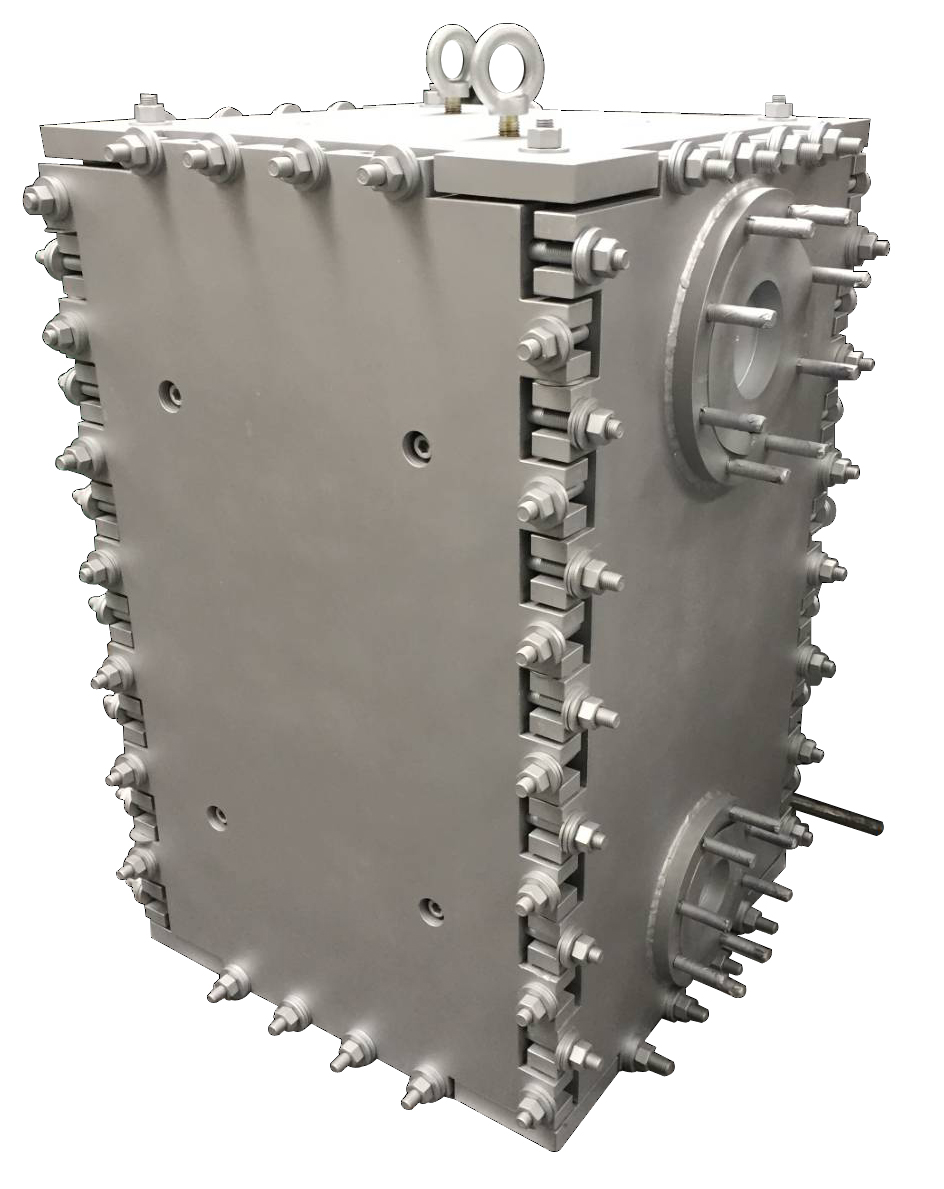

Cubic blocks type graphite heat exchanger
SiC type graphite heat exchanger
| Property | values |
NK-1 (TUBE) |
NS-1 (TUBE) |
NS-1 (BLOCK) |
| Density | g/cm3 | 1.82 | 1.93 | 1.92 |
| Young's mouldus | Mpa | 24000 | 26000 | 17500 |
| Flexural Strength |
Mpa |
>50 | >52 | 35 |
| Tensile Strength |
Mpa |
>26 | >28 | >18 |
| Compressive Strength |
Mpa |
>100 | >85 | 85 |
| Thermal expension | x10-6K-1 | 4-5 | 4-5 | 8-10 |
|
Thermal conductivity |
Wm-1K-1 | >30 | >60 | >120 |
|
Ash Value |
% | <0.5 | <0.5 | <0.5 |
